Paper Making Machine Parts Polyester Mesh Belt Dryer Screen 4 Meters Width

Product Categories

Conveyor Wire Mesh Belt [131]
Spiral Mesh Belt [99]
Flat Wire Mesh Belt [78]
Chain Mesh Conveyor Belt [128]
Flat Flex Conveyor Belt [108]
Compound Balanced Belt [96]
Plate Conveyor Belt [36]
PTFE Conveyor Belts [47]
Polyester Mesh Belt [149]
Polyester Sludge Dewatering Belt [99]
Nylon Filter Mesh [119]
Screen Printing Mesh [29]
Stainless Steel Woven Wire Mesh [98]
Architectural Wire Mesh [23]
Polypropylene Filter Cloth [43]
Polyester Dryer Screen [40]
Polyester Forming Fabric [39]

Hebei Reking Wire Mesh Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

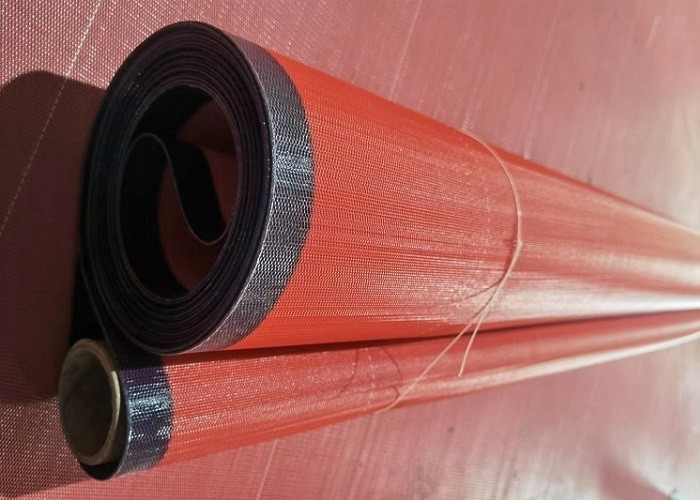

Paper Making Machine Parts Polyester Mesh Belt Dryer Screen 4 Meters Width

Brand Name : RK

Model Number : RKDB01

Place of Origin : China

MOQ : 1square meter

Price : USD 9.8-13.8/square meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 square meter per month

Packaging Details : woven bag+wooden case

Name : polyester dryer screen

Color : red and white

Width : 1-4 meters

Length : 1-100meters

Material : 100%polyester

Usage : produce the non-woven fabric

Type : 4106

Contact Now

Dryer Screen Dryer Mesh Belt For Paper Making Machine Parts Sldf Dryer Screen

Introduction:

Polyester woven dry nets can be divided into one and a half layer, double-layer , flat wire, double flat wire and special material dryer fabric according to the types.

3-shed, 4-shed series one and a half polyester woven fabric is suitable for drying cultural paper, printing paper, wrapping paper, etc.

Flat wire, double flat wire polyester woven dryer fabric are generally suitable for the front drying cylinders of the dryer parts, and all high-quality papers can be used for.

Product Name	Non-woven fabric dryer belt polyester dryer screen
Material	100% Polyamide thread
Technique	dense weave
width	30cm,40cm,60cm,1m or customized
Seam	spiral ring,pin seam and endless seam
Edge	Ddges sealed by glue;heat resistant cloth
Working temperture	-70 ℃ to 180 ℃
HP value	2 to 8

Specification:

Type	Wire Diameter mm		Density /cm		Weight Kg/m2	Thickness Mm	CFM 200Pa
	Warp	Weft	Warp	Weft
22503	0.50	0.50	24	12	1.06	2.0	500
24503	0.50	0.50	25	12	1.10	2.0	438
22504	0.50	0.50	24	12	1.26	2.1	750
24504	0.50	0.50	26	12	1.3	2.1	680
4106	0.50	0.50	23	12.6	1.2	1.75	425
4106-1	0.5	0.3	22.8		1.3	1.8	500
		0.7
4106-2	0.35*0.68	0.50	19.6	15.7	1.10	1.62	345
15505	0.25*0.40	0.50	17	13.5	0.75	0.83	406
20654	0.33*0.52	0.65	22	7.5	1.02	1.35	625
18688	0.30*0.58	0.35/0.68	20	18.5	1.2	1.40	100
16904	0.29*1.06	0.90/0.98	15.2	8.6	1.33	1.54	120
